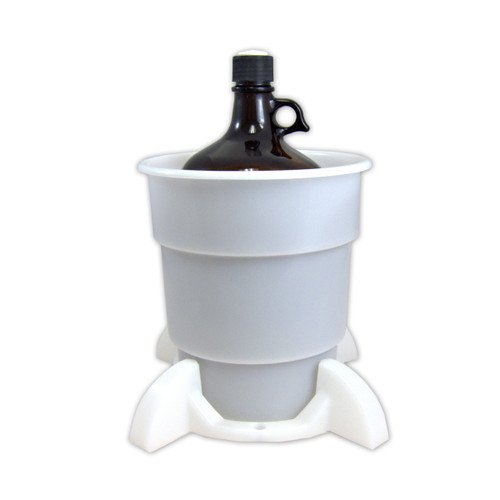

Port Cap System, Glass 4 Liter Bottle, 38mm Port Cap, Secondary Container with footed base.
Port caps permit multiple waste lines of varying size and type to be connected to the container of your choice. These caps are designed to ensure proper delivery and waste containment of industrial chemicals and solvents. Our closed system reduces harmful emissions which are potentially hazardous to employees and our environment.
Port caps feature 1/4-28 threaded ports in a polypropylene insert, with expanded PTFE gaskets. Each port has a through-hole for 1/8″ OD tubing, machined at a 10 degree angle; push tubing through the cap to supply your system. Cap outer is made of either PP or HDPE, depending on the cap type. 1/8″ OD supply tubing may also be press-fit into the underside of each cap if needed. Includes plugs for all holes to maintain a closed system when holes are not in use.
This Port Cap Kit includes the following components:
Amber Glass 4 Liter Bottle EC-38GL
Choose Port Cap Model: WF-GL38-2Kit, WF-GL38-3Kit or WF-GL38-4Kit (based on number of ports selected)
Secondary Container SC-3004CPB
Port Cap Specifications:
Fits glass jugs and bottles with a 38-430 closure
Features either 2, 3 or 4 female ports, size 1/4-28
polypropylene insert and polypropylene spin collar
includes plugs for unused holes
Bottle specifications
Amber glass jug, 4 Liter (135oz) with 38-439 Finish. Type III soda lime glass, features a chemically resistant black cap with PTFE liner for maximum chemical resistance.
Made from amber soda-lime glass that conforms to USP Type III requirements
158mm Diameter x 340mm High (6.2″ x 13.4″)
Approx. 1/4″ bottom thickness
Amber bottles protect light-sensitive samples during storage
Black Phenolic Ribbed Cap, PTFE-Lined
Manufactured with shoulder handle for ease of use
WARNING: This product can expose you to chemicals including Tetrafluoroethylene, which are known to the State of California to cause cancer. Prop 65 Warning
