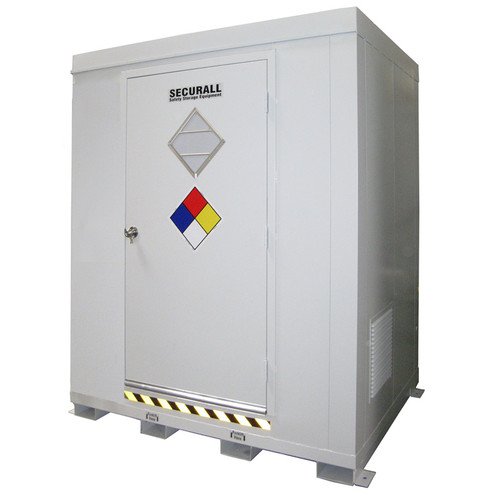

Insulated Chemical Building with Lighting, Shelves, 8’4″H x 7’W x 5’D

Description

Insulated Chemical Storage Building with Shelves, Lighting, Optional Fire Rating, 8’4″H x 7’W x 5’D. 211.4 Cubic Feet Chemical Storage Locker.
Specifically designed for outdoor hazardous material storage and dispensing from 55-gallon drums containing flammable or combustible liquids. Outer wall is constructed of all-welded 16 or 12 gauge steel. Inner wall is constructed of 20 gauge steel. The double wall construction contains 3″ of air space throughout. All Hazmat Storage Buildings are designed in accordance with the standards set forth by NFPA Code 30 and comply with OSHA and EPA regulations. All models are FM Approved for the storing and dispensing of flammable and combustible liquids. All electrical installations are U.L. Approved & Compliant to 1999 & 2002 NEC.
Approvals

OSHA – Complies with current OSHA regulations
FM – Factory Mutual Approved
NFPA – Designed in accordance with specifications set forth by the National Fire Protection Association

Dimensions: 8’4″H x 7’W x 5’D
Approximate Ship Weight: 2331 lbs
Sump Capacity 102 Gal.
Shelving: 3 Tier of shelving on side & back wall.
Door Style: 1-42″ W x 80″ H door installed with a UL Classified commercial grade keyed lockset. The door shall serve as personnel entrance .
Standard Design Features

Models AG200 through AG1200 Exterior Walls: 16 gauge galvannealed steel.
Models AG1600 through AG8000 Exterior Walls: 12 gauge galvannealed steel.
Interior Walls: 20-gauge galvannealed steel (3″ air space between walls)
R-11 Fiberglass insulation in ceiling and walls
GFCI Duplex receptacle with weatherproof cover
Steel shelving (3 Tiers) with raised edges
Dust Proof/Fluorescent Interior Light with Weatherproof Switch
Sump: 12-gauge steel liquid tight, continuously welded.
Grounding: NFPA & OSHA Compliant Static ground connection inside and out on all explosion rated models
Grating: Removable galvanized steel (Optional)
Forklift channel: 12 gauge galvanized steel
Labeling: NFR warning label, Hazard Ratings System, Instructions
Venting: Natural convection vents
Available with 2 or 4 hour fire rating
Chemical/corrosive/ultraviolet resistant paint
Removable galvanized steel safety floor planking
Moisture Resistant Exterior Light with Photocell
Reflective warning tape marking entryway

Interlocking Wall Structure – Securall® Chemical Storage Buildings are designed using Interlocking Wall Sections which provide superior strength and durability.
Exterior Wall Construction – Securall® HazMat Storage Buildings are all-welded using 12 or 16 gauge galvannealed steel outer walls and 20 gauge cold rolled steel inner walls provide maximum durability, weather resistance, and rigidity.
Safety Floor Planking – Slip resistant planking 13″ wide, 12 gauge galvanized steel with raised perforated buttons and debossed holes protruding down. Galvanized steel floor planking above sump area for maximum corrosion resistance. Floor planking designed to sustain a minimum uniformly distributed load of 250 pounds per square foot. Floor planking and supports are removable to facilitate sump cleaning in the event of a spill.
Upgrades Available
Hurricane Resistant Walls – These buildings are available in hurricane rated and have been tested to determine the amount of force they can withstand and were shown to withstand F-4 tornado force winds of 250 mph. The chart below demonstrates the wind speed that a particular length of wall will resist. Upgrade package is available for Tornado Resistant Walls.
Explosion Relief Panels – Used in the construction of buildings designed for the storage and dispensing of Class IA and Class IB flammable liquids. Explosion relief panels limit the damage within an enclosed hazardous location. When the panel(s) are subjected to an explosive force, the pressure relieving panel quickly vents the force before it causes major damage. The panels are designed to release at 20 psf.
Fire Rating – FM Approved Fire Rated Wall & Roof Design Tested at Intertek Testing Laboratory
Fire-Rated Storage Buildings (8’4″H X 42’W X 9’D Max Dimensions) carry the Factory Mutual System Approval label and have an FM Approved Fire Rated Wall & Roof Design. Wall and roof are tested at Intertek Testing Laboratories. Storage buildings are constructed based upon UL Fire Resistance Ratings classification criteria. Check with your local authority having jurisdiction for correct wall/roof rating needed. In addition, all Fire-Rated Buildings come with hydraulic operated Self-Close, fire-rated doors and fire damper protected vents.

Standard models are available in 2-hour and 4-hour fire ratings
Wall ratings are either 2 or 4 hour fire rated
Roof ratings are either 1.5 or 3 hour fire rated )

2 Hour Fire Rated wall construction built with 1.5 hour fire rated roof construction, 1.5 hour fire rated door construction, and 2 hr wall design. Air inlet vents with UL Classified and labeled fire damper with louvers. Dampers have a galvanized steel frame, curtain-type galvanized steel blades and a UL Classified 165° F fusible link.
4 Hour Fire Rated wall construction built with 3 hour fire rated roof construction, 3 hour fire rated door construction, and 4 hr wall design. Air inlet vents with UL Classified and labeled fire damper with louvers. Dampers have a galvanized steel frame, curtain-type galvanized steel blades and a UL Classified 165° F fusible link.
Many other upgrades are available, including:

Steel or Aluminum Ramps
Electrical Classification
Explosion-Proof Light with Switch (interior or exterior)
Dust/Vapor Resistant Lights
Explosion-Proof Heater
Explosion-Proof Air Conditioner
Temperature Switch
Dry Chemical Fire Suppression System
Dry Chemical Alarm
Sprinkler System
Fire Department Hose Connection
Liquid Level Detector with Alarm
Sump Liner
Door Upgrades
Eyewash Stations
Sump Drain
Custom paint
Primer coat for saltwater
Fusible link hold open, door closer
Solar panels
